Product Details
| Place of Origin: | kiosk manufacturer |
|---|---|
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS8341 |
Payment & Shipping Terms
| Min Order: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
Detailed Product Description

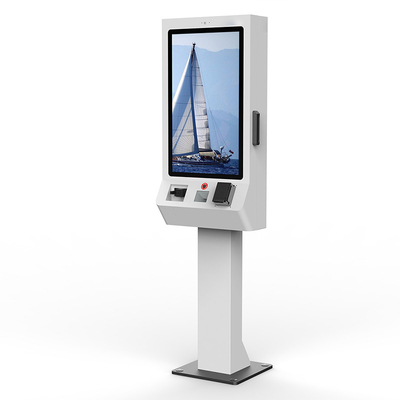

This Outdoor Interactive Kiosk features a 19-inch waterproof touch screen, integrated card reader, and thermal printer. Designed for rugged outdoor use, it offers 24/7 self-service for ticketing, information display, and secure payments. Ideal for public venues, it enhances customer engagement, reduces queue times, and operates reliably in all weather conditions.
The 19-inch industrial-grade touch screen offers a highly responsive and intuitive user interface, ensuring smooth interaction even under sunlight or with gloves. It enhances customer experience in all outdoor applications.
The built-in card reader supports magnetic stripe, IC, and contactless cards, enabling secure and fast payments. It reduces manual errors and provides a seamless self-service payment process.
The high-speed thermal printer efficiently prints receipts, tickets, or confirmations, ideal for parking, cinemas, transport, and self-check-in scenarios. Its easy paper roll replacement ensures minimal downtime in busy locations.
| Product Name | Outdoor Interactive Kiosk | Model Number | LKS8341 |
| Screen Size | 19 Inch TFT LCD | Custom Screen Size | 8–65 Inch Optional |
| Touch Technology | Infrared / Capacitive / SAW | Resolution | Up to 1280×1024 |
| Brightness | 250 cd/m² | Contrast Ratio | 1000:1 |
| Cabinet Material | 1.5–2.5mm Cold-Roll Steel | Surface Finish | Powder Coated, Optional Branding |
| Installation Type | Freestanding or Wall Mounted | Environment Rating | Waterproof, Dustproof, Anti-rust |
| Operating System | Windows 7 / 10 / Linux | Processor Options | Intel E5700 / G2020 / i3 / i5 / i7 |
| RAM / Storage | 2–8GB RAM / 500GB HDD | Optional SSD | 128GB–512GB |
| Card Reader | Magstripe / RFID / IC Card | Printer | Thermal Receipt Printer |
| Payment Options | Cash Acceptor / Coin Acceptor | Barcode Scanner | 1D/2D Scanner Optional |
| Connectivity | Ethernet / WiFi / 4G Optional | Power Supply | 110–240V AC / UPS Optional |
| Certifications | CE, FCC | Warranty | 1 Year |
| MOQ | 10 Units | Supply Capacity | 1000–2000 Units/Month |
| Delivery Time | 4–6 Weeks | Price | USD 5000+ per Unit |
Highlight: Outdoor Interactive Kiosk, 19 Inch Outdoor Interactive Kiosk, Waterproof Outdoor Interactive Kiosk, Touch Screen Outdoor Interactive Kiosk, Outdoor Interactive Kiosk with Card Reader, Outdoor Interactive Kiosk with Printer | |||
Software
Click Detailes of interactive kiosk software to learn more | Hardware
|
Features of outdoor interactive kiosk
|
|
Applications
| Customization Options
|
Designed with waterproof, dustproof, and anti-glare features, this kiosk performs reliably in rain, snow, heat, and sunlight with IP-rated protection.
Industrial-grade touch screen (capacitive or infrared) supports operation even with gloves or wet hands, ensuring smooth user interaction.
Equipped with a card reader and thermal printer, the kiosk offers a complete self-service solution for ticketing, payments, and information display.
Supports various screen sizes, system platforms (Windows/Linux/Android), payment modules, branding colors, and mounting options (floor-standing or wall-mounted).
Provides continuous unattended service, improving customer convenience and reducing dependency on staff.
Enables centralized control, real-time monitoring, remote updates, and error alerts for large-scale deployments.
Multilingual UI, HD display, and intuitive navigation make it easy for users of all backgrounds to operate independently.
Connect to power. The kiosk will automatically boot to the main screen. Ensure network connectivity (Ethernet, WiFi, or 4G) is established.
The user taps the touch screen to choose a service: ticket booking, information inquiry, bill payment, etc.
Depending on the application, users may scan a QR code, swipe a card, insert an ID, or input their phone number or reservation code.
Payments can be made using magnetic stripe cards, IC/chip cards, contactless (NFC), QR code payment, or even coins/banknotes (if enabled).
Upon transaction completion, the built-in thermal printer issues a receipt, voucher, or ticket. Low paper or jams trigger system alerts.
After use, the kiosk automatically clears the session data and returns to the main screen for the next user.
Tips:
|
|
|
Note: The following prices are for reference only. For a customized quote tailored to your specific project, please contact the LKS sales team directly.
| Component/Specification | Option Range | Impact on Price | Remarks |
|---|---|---|---|
| Screen Size | 17"–65" | High (larger size, higher cost) | Custom sizes increase LCD and housing cost |
| Touch Technology | IR, SAW, Capacitive | Medium to High | Capacitive is most expensive and responsive |
| PC System | Dual-Core to i7 / RAM 2–8GB | Medium | Higher configurations for complex applications |
| Peripherals | Printer, Scanner, Card Reader, etc. | High | Each add-on increases overall cost |
| Cabinet Material | 1.5mm–2.5mm Cold-rolled Steel | Medium | Thicker and anti-vandal coatings cost more |
| Outdoor Protection | Waterproofing, Anti-dust, Anti-vandal | High | Required for all outdoor installations |
| Production Volume | 10–500+ Units | High (volume discounts apply) | Higher quantity lowers per-unit cost |
| Software Customization | Basic UI to Full Integration | Medium to High | Varies by software depth and integration needs |
| Shipping & Packaging | Wooden Case, Film Wrap, Foam | Medium | International shipping adds to the total cost |
Define Usage Scenario: Clarify if the kiosk will be used in places like a station, hospital, bank, or mall. This determines hardware needs.
Choose the Screen Size & Touch Type: Based on user distance, lighting conditions, and interaction level.
Select Required Peripherals: Such as printer, card reader, coin acceptor, barcode scanner, etc.
Confirm Environmental Protection Level: Ensure IP65-level waterproofing, anti-vandal casing, and sufficient cooling.
Customize Branding: Define logo placement, color, and decals to align with your brand.
Request Technical Support Plan: Inquire about remote support, system upgrades, and long-term maintenance.
Consult LKS Sales Team: Share your specifications and receive a tailored proposal and quotation.
Yes. The kiosk is designed with a waterproof, weather-resistant enclosure (IP-rated), anti-rust finish, and sunlight-readable screen, ensuring stable performance in rain, snow, dust, or direct sunlight.
Absolutely. While the default size is 19 inches, we offer optional customization up to 65 inches depending on your use case—whether for advertising, wayfinding, or detailed forms.
The card reader supports encrypted, EMV-compliant transactions. Optional upgrades include NFC and biometric authentication, ensuring customer data is protected during every transaction.
The system can be set to display real-time error messages. Our printers feature easy front-access panels for quick roll replacement and jam clearing, minimizing disruption to service.
Yes. We provide APIs and SDKs for seamless integration with your existing platforms, including payment gateways, CRM systems, or ticketing software. Remote monitoring and updates are also supported.
Routine maintenance includes cleaning the screen, checking for printer paper, and inspecting internal hardware via the front-access panel. Remote diagnostics also help identify technical issues early.
