Product Details
| Place of Origin: | kiosk manufacturer |
|---|---|
| Brand Name: | Lien |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS8341 |
Payment & Shipping Terms
| Min Order: | 10 UNITS |
|---|---|
| Price: | $ |
| Packaging: | Strong Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
Detailed Product Description

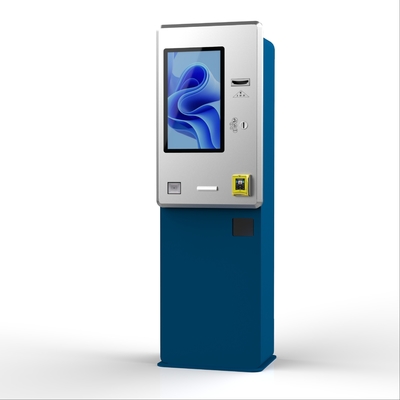

This touch screen outdoor kiosk is designed for rugged outdoor use, featuring a waterproof enclosure, high-brightness 19-inch TFT LCD monitor, and flexible input options. It supports multiple payment peripherals such as a card reader, receipt printer, and coin/bill acceptor. Built with cold-roll steel and IP65-rated components, it ensures reliable 24/7 operation in banks, hospitals, stations, and shopping malls. Modular structure, vandal resistance, and custom OS make it user-friendly and maintenance-efficient.
| Model | LKS8341 | Monitor Size | 17 / 19 inch TFT LCD |
| Touch Screen | IR/SAW/Capacitive | Brightness | 250 cd/m² |
| Cabinet Material | 1.5–2.5mm Cold-rolled Steel | Protection | Anti-dust, Anti-vandal, IP65 |
| Supported OS | Windows 7 / Linux | Resolution | 1280×1024 |
| CPU | Dual Core E5700 / G2020 / i3 / i5 / i7 | RAM / HDD | 2–8 GB / 500GB |
| Card Reader | Magnetic, IC, RFID, Mifare | Receipt Printer | Epson 80mm Thermal, Auto Cutter |
| Bill Acceptor | 96%+ accuracy, 1000 notes | Coin Acceptor | Accepts up to 32 types, 2 Coins/sec |
| Interface Ports | 6 USB, 6 RS232, LAN, Sound Card | UPS | 3–20 min backup |
| Optional Devices | Cash/Coin Dispenser, Barcode Scanner, Camera, RFID | Power Supply | 110–240V, Digital Power Supply |
Highlight: Touch Screen Outdoor Kiosk, Waterproof Touch Screen Outdoor Kiosk, 19 inch Touch Screen Outdoor Kiosk, Touch Screen Outdoor Kiosk with Card Reader, Touch Screen Outdoor Kiosk with Printer | |||
| Cabinet Material | Cold-roll steel 1.5mm–2.5mm, anti-dust, anti-vandal |
| Monitor | TFT LCD, 250cd/m² brightness, 1000:1 contrast, 40,000+ hrs lifespan |
| Touch Screen | IR/SAW/Capacitive, high precision, tempered glass, 50M+ touches durability |
| PC System | Industrial-grade PC (Dual Core / i3 / i5 / i7), 2–8GB RAM, 500GB HDD |
| Card Reader | Magnetic/IC/RF card support, encrypted pinpad (IP65) |
| Bill Acceptor | Cashcode with 96%+ validation rate, up to 1000-note capacity |
| Coin Acceptor | 32 coin types, counterfeit detection, 2 coins/sec |
| Printer | Epson thermal printer, 80mm width, 150mm/s print speed, autocutter |
| Power Supply | 110–240V, UPS backup 3–20 mins, digital AC supply |
| Optional Parts | Barcode scanner, passport reader, A4 printer, webcam, RFID, advertising screen |
Operating System: Windows 7 / XP / Linux (license not included) Supported Drivers: Touch panel, printer, cash devices Kiosk Application Options: Payment software, queue management, visitor check-in, ticketing system Remote Monitoring: Optional support for system health monitoring and remote updates |  |
Applications
| Customization Options
|
Weatherproof and Durable: Designed with IP65-rated waterproof and dustproof enclosure, ideal for harsh outdoor conditions like rain, dust, or snow.
19” High-Brightness Display: Equipped with a 19-inch TFT LCD screen offering vivid visuals and sunlight readability.
Sensitive Touchscreen: Supports capacitive or infrared multi-touch technology for smooth and responsive user interaction.
Integrated Card Reader and Printer: Built-in IC card reader and thermal printer make it perfect for ticketing and payment applications.
Highly Customizable: Available in multiple sizes and configurations, with options for external devices like cameras, QR scanners, and more.
Reliable Performance: Runs on industrial-grade PC with support for Windows or Linux, enabling 24/7 stable operation with remote management options.
A touch screen outdoor kiosk is a self-service terminal designed for outdoor environments. It features a waterproof and dustproof body, a high-brightness touch display, and often includes devices like printers or card readers. It is widely used in public spaces for ticketing, information services, and self-check-in applications.
Yes, our touch screen outdoor kiosk is built for year-round outdoor use. With an IP65-rated enclosure, it withstands rain, dust, heat, and cold. It functions reliably in temperatures from -20°C to 60°C, making it suitable for use in outdoor transportation hubs, city centers, theme parks, and more.

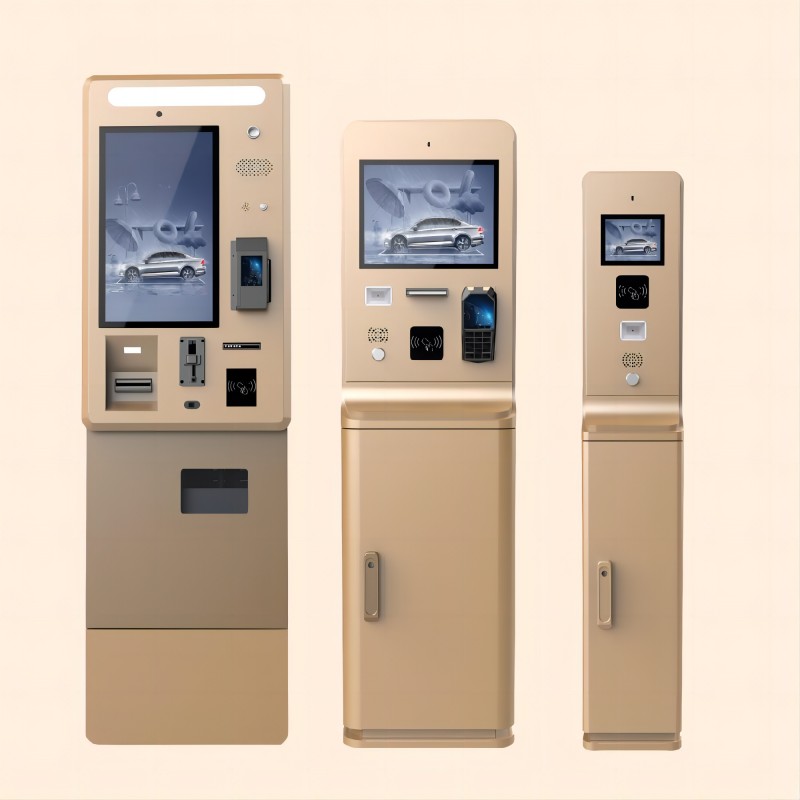

The touch screen outdoor kiosk comes in a wide range of sizes from 17” to 65”. The 19” model is compact and cost-effective for simple tasks like ticket printing. Larger models are suited for digital signage, advertising, or interactive directories, depending on your application needs.
Our touch screen outdoor kiosk supports both Windows and Linux OS. It comes with basic drivers for touch, card reading, and printing. Additional software like payment systems, queue management, or customer-facing apps can be installed based on your requirements. Remote monitoring software is optional.
Yes, the touch screen outdoor kiosk is equipped with secure components like encrypted card readers, tamper-resistant locks, and optional surveillance cameras. It supports PCI-compliant payment modules and offers secure data transmission, making it safe for financial or identity-sensitive transactions.
Absolutely. The touch screen outdoor kiosk is fully customizable in terms of size, housing color, logo, touch type, and add-on devices. Whether you need a printer, scanner, NFC reader, or facial recognition camera, we can tailor the kiosk to match your application and branding.
