Shenzhen Lean Kiosk Systems CO., LTD
Product Details
| Place of Origin: | Kiosk manufacturer |
|---|---|
| Brand Name: | LKS |
| Certification: | FCC, CE, ROHS |
| Model Number: | LKS-8679 |
Payment & Shipping Terms
| Min Order: | 1 unit |
|---|---|
| Price: | $ |
| Packaging: | Wooden Case |
| Delivery Time: | 5-6 weeks |
| Payment Terms: | TT |
| Supply Ability: | 5000 units per month |
Detailed Product Description

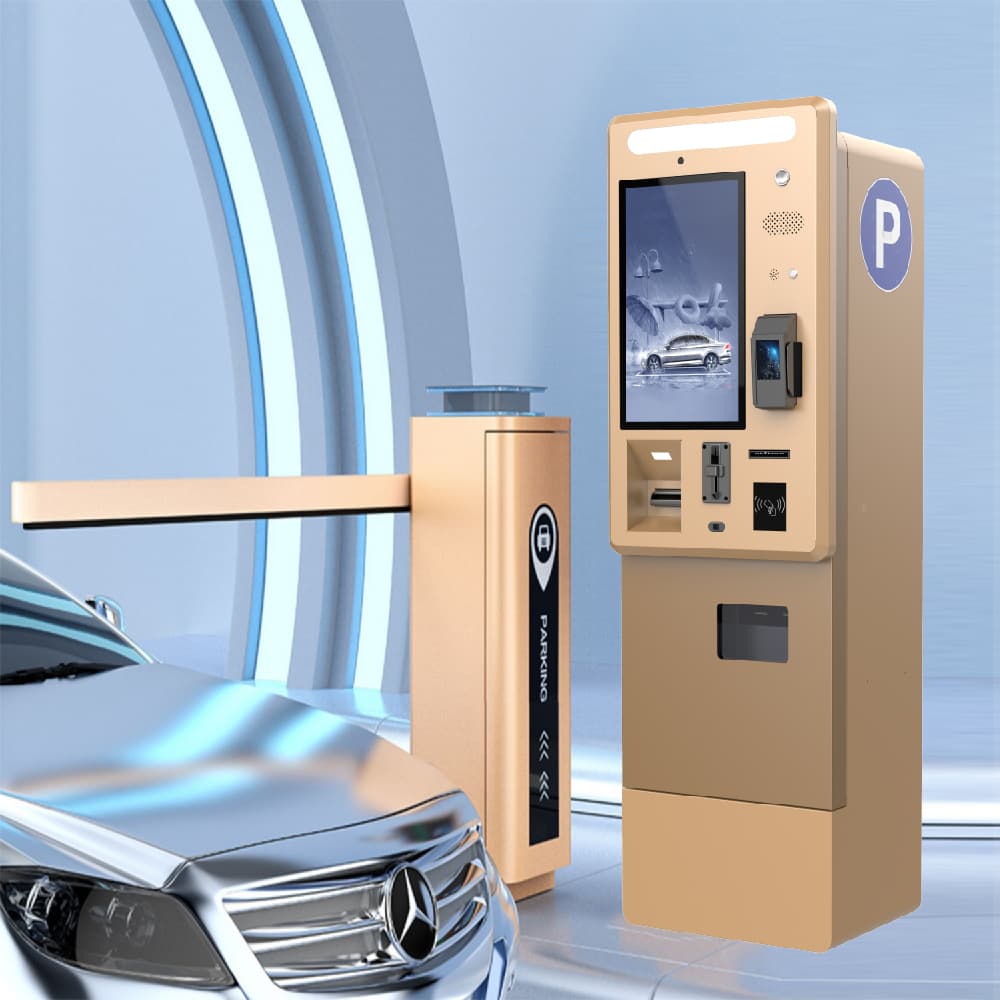

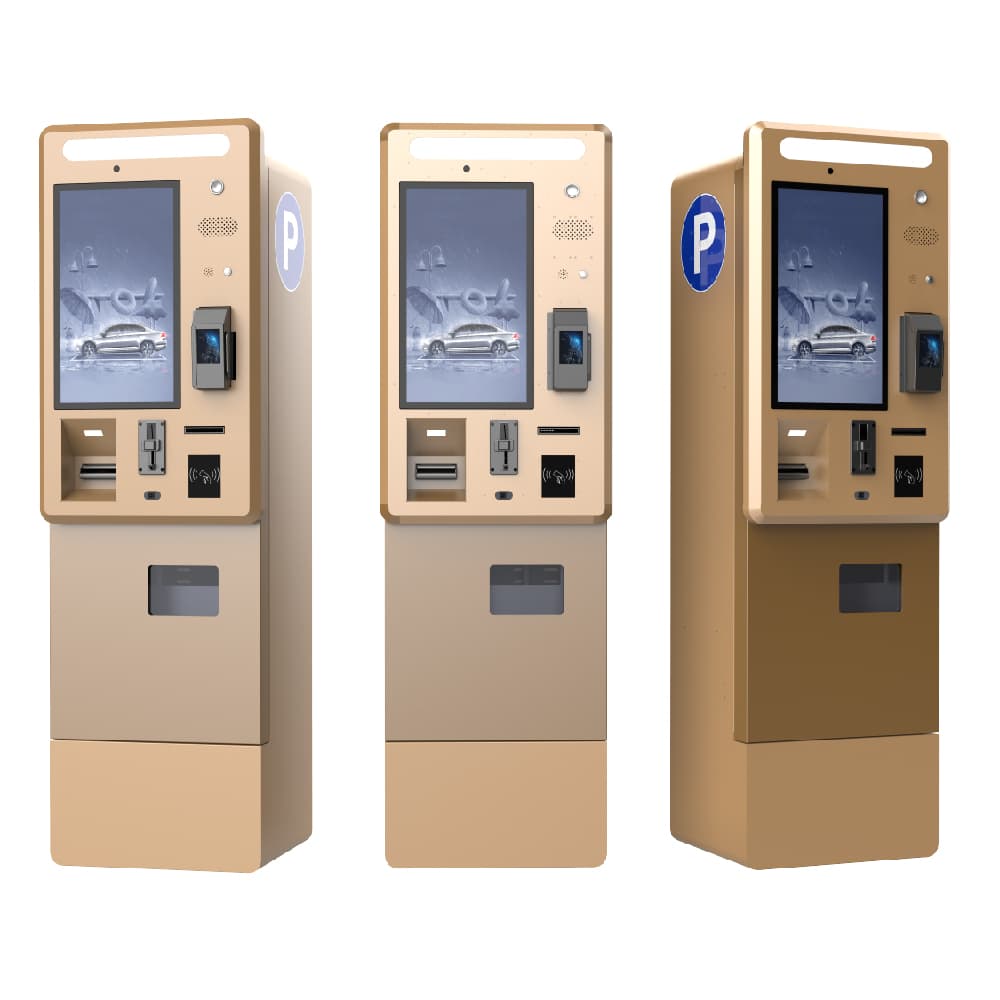

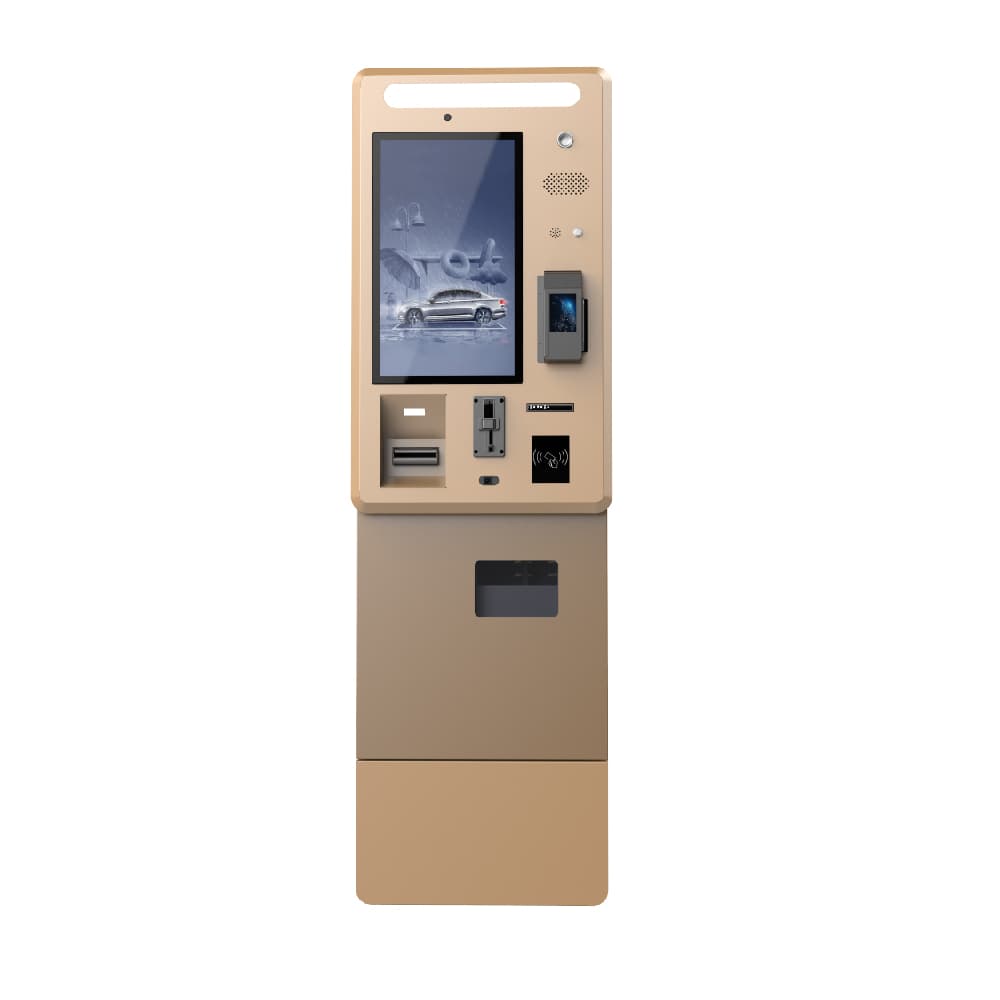

The 21.5 Inch Outdoor Payment Kiosk with NFC and QR Code Payments is a robust and weatherproof solution tailored for modern parking lots. Featuring a large and responsive touch screen, it supports multiple payment methods including contactless cards and mobile QR payments. Built for durability, it withstands rain, dust, and temperature changes, ensuring reliable performance in outdoor environments. With customizable branding, fast transaction speed, and intuitive UI, this kiosk enhances user convenience and boosts operational efficiency.
| Display | LCD Monitor | 21.5-inch TFT LCD, high brightness, suitable for outdoor visibility | Optional sizes available |
| Touchscreen | Touch Panel | Capacitive or Infrared, multi-touch, anti-scratch, high precision | Single or multi-touch |
| Processor | PC System | Industrial-grade motherboard with Intel i3/i5/i7 CPU | Customizable CPU options |
| Memory | RAM | 4GB / 8GB | Upgradable |
| Storage | HDD/SSD | 500GB HDD or optional SSD | SSD preferred for speed and reliability |
| NFC Reader | Contactless Reader | Supports Mifare, EMV, ISO14443A/B | Compatible with mobile wallet systems |
| QR Scanner | Barcode Reader | 1D/2D QR code scanner for mobile payment | Fast and accurate scanning |
| Printer | Receipt Printer | 80mm thermal printer with auto-cutter | Epson or equivalent |
| Power | Power Supply | Industrial AC input 100–240V, optional UPS | Optional UPS for power backup |
| Enclosure | Cabinet | Durable steel, waterproof, anti-rust, anti-vandal | IP55/IP65 rating optional |
| Interfaces | I/O Ports | Multiple USB, RS-232, Ethernet, audio, power | Expandable ports available |
| OS | Operating System | Windows 7 / Windows 10 / Linux | License optional |
Highlight: Outdoor Payment Kiosk, 21.5 Inch Outdoor Payment Kiosk, Outdoor Payment Kiosk With NFC payment, QR Code Payments Outdoor Payment Kiosk, Outdoor Payment Kiosk for Parking Lot, Outdoor Parking Payment Kiosk | |||
Hardware
| Software
|
 | Applications of outdoor payment kiosk
|
The 21.5-inch touchscreen, combined with NFC and QR code payment capabilities, offers significant advantages for an outdoor payment kiosk. The 21.5-inch screen provides an ideal balance between compact design and user visibility, ensuring clear display and smooth interaction even in direct sunlight. Its size supports intuitive navigation without overwhelming users. NFC enables fast, contactless card or mobile payments, while QR code scanning supports digital wallets and app-based transactions, enhancing flexibility and hygiene. These technologies together reduce wait times, support multi-language interfaces, and meet global user preferences. Ideal for outdoor use, this configuration boosts efficiency, user satisfaction, and transaction speed in harsh environments.
Customizations of outdoor payment kiosk
|
|
| Step | Description | Tools Needed | Notes |
|---|---|---|---|
| 1 | Site Assessment | Measuring tools | Ensure power/network access; confirm space size. |
| 2 | Mounting and Securing | Drill, bolts, level | Secure kiosk to ground or platform. |
| 3 | Power Connection | Electrical tools | Connect to 110V/220V AC; use voltage stabilizer. |
| 4 | Network Setup | Ethernet cable or SIM card | Support for LAN/Wi-Fi/4G depending on config. |
| 5 | Software Configuration | USB keyboard, monitor (optional) | Load OS, UI, payment SDK/API, language settings. |
| 6 | Payment Module Testing | Test cards, phones with NFC/QR | Validate NFC, QR scanning, printer functions. |
| 7 | End-User Operation Training | User manual | Train staff on basic use, maintenance, and support. |
| 8 | Routine Maintenance (monthly recommended) | Cleaning tools | Screen cleaning, paper refill, system update. |
| Configuration Type | Unit Price Range (USD) | Notes |
|---|---|---|
| Basic Model (No NFC/QR, Indoor) | $900 – $1,300 | Entry-level, no weatherproofing or contactless features. |
| Standard Outdoor Model (with QR Only) | $1,400 – $1,800 | Includes waterproof housing, thermal printer. |
| Full Version (NFC + QR + 21.5" screen) | $1,900 – $2,500 | Recommended for parking lots, includes full tech stack. |
| Custom Branding/Software Integration | Add $150 – $500 | Based on specific branding, software, hardware upgrades. |
| Intended Use | Define use scenario: parking lot, transit hub, retail, etc. |
| Screen Size | 21.5" is ideal for clear visuals and touch precision outdoors. |
| Weather Resistance | Choose waterproof and anti-UV housing for outdoor durability. |
| Payment Modules | Ensure support for NFC (tap), QR scanning, and bank card readers. |
| Integration Needs | Verify API compatibility with your backend system. |
| Volume and Shipping | Bulk orders reduce per-unit cost; ask for packaging and freight details. |
| After-Sales Support | Choose manufacturers with remote support, on-site repair or warranty plans. |
| Manufacturer Selection | Prefer factory-direct suppliers like LKS to ensure better pricing and OEM/ODM options. |
The 21.5-inch touchscreen offers a balance between usability and size, providing clear visibility in sunlight, responsive interaction, and enough space for a user-friendly UI. It's ideal for outdoor settings where space is limited but clarity and durability are essential.
NFC and QR code payment options enable fast, secure, and contactless transactions, reducing queue time and improving hygiene. These technologies support mobile wallets and modern payment platforms, making the kiosk compatible with global customer habits and expectations.
Yes. The kiosk features an industrial-grade waterproof and anti-vandal metal enclosure with optional IP55/IP65 ratings. It's built for long-term use in outdoor environments, resistant to rain, dust, temperature fluctuations, and UV exposure.
Absolutely. The kiosk supports Windows or Linux OS and can integrate with most third-party parking or ticketing software via API. It can also be customized to support barcode readers, cameras, or license plate recognition for seamless system integration.
The kiosk runs on a standard AC input (100–240V) and offers optional UPS backup to prevent service disruption during power outages. This ensures operational continuity, especially in critical applications like parking and public transport.
Yes. The kiosk is fully customizable. You can choose different CPU levels, printer models, screen brightness, payment modules (e.g. add EMV, cash acceptor), and exterior color/logo. These options ensure the unit aligns with your branding and technical needs.
