Bank Kiosk

What is a Bank kiosk

A bank kiosk is a self-service machine designed to allow customers to perform various banking activities without the need for human assistance. These kiosks provide services such as bill payments, cash deposits, withdrawals, balance inquiries, and card transactions, streamlining banking processes and reducing wait times.

At LKS, our bank kiosks are equipped with cutting-edge technology and high-performance components. Supporting Windows 7/8 or Linux OS, they feature 17/19-inch touchscreen options (up to 65 inches), with high-definition TFT-LCD displays offering 1280x1024 resolution and a 1000:1 contrast ratio. The kiosks are built with capacitive, SAW, or infrared touch technologies for high accuracy and responsiveness. Key specifications include a Cashcode Bill Acceptor with a 96% validation rate and capacity for up to 1000 notes, multiple card reader support (Magstripe, IC, and RF cards), and an encrypted PIN Pad for secure transactions. Additionally, the Epson receipt thermal printer ensures quick printing at speeds of 150mm/s. Built with anti-dust, anti-vandal, anti-rust, and moisture-proof materials, these kiosks are designed for durability in various environments. Ideal for locations such as banks, metro stations, hospitals, and shopping malls, LKS’s bank kiosks offer quick, secure, and efficient service, reducing human interaction and enhancing banking efficiency.

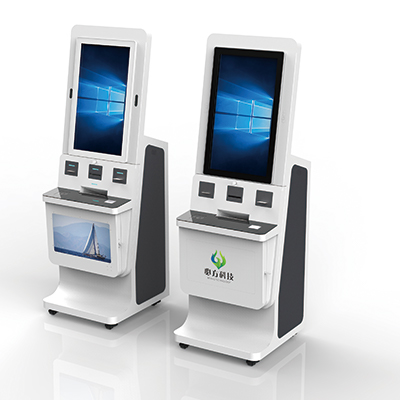

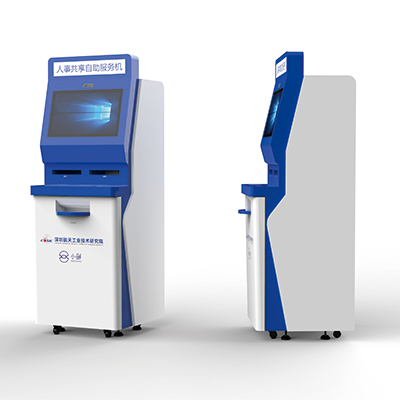

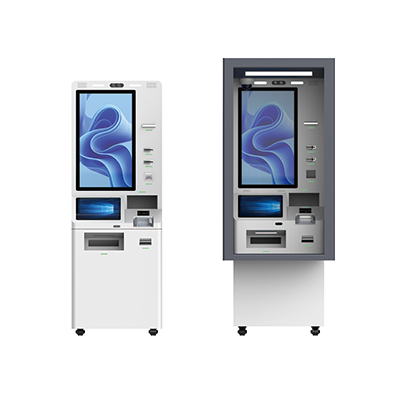

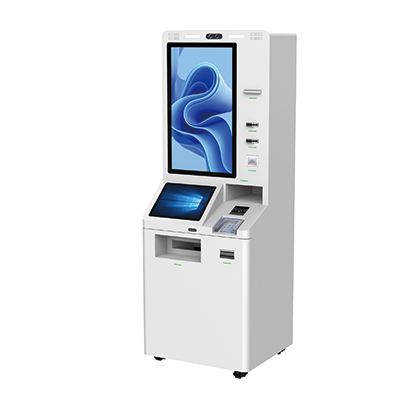

ATM Kiosk for Sale at LKS Kiosk in Different Types

Page 1 of 0

Standard hardware components List of Banking ATM Kiosk by LKS

ComponentsDetails
PC systemIndustrial BoardSeavo/ Gigabyte/Advantech AIMB 562
CPUDual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM2GB /4 GB / 8GB
HDD500G
Interface6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power SupplyHUNTKEY/Great Wall
LCD monitorScreen Size17 inch/19inch ( optional from 8inch to 65inch)
Brightness250cd/m2
anglehorizontal 100°above;Vertical 80°above
Contrast1000:1
Backlight tube lifemore than 40,000hours
Max. resolution1280×1024
Touch screenResolution 4096x4096
Screen Size17/19 inch Diagonal ( optional from 8inch to 65inch)
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card ReaderInterfaceRS232
Card TypeSupport Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
Power VoltageDC 24V±5%
Card Entry methodMagnetic signal, Optoelectronic signal and rear card signal
Encrypted PinpadKeylift~span2,000,000 cycles
Key force2~3N
Key trip>2.5mm
Protection levelip65
Cashcode Bill acceptorValidation Rate96% or higher
Banknote InsertionFour-way
EscrowOne banknote
Capacity1000 notes Max
Coin AcceptorCoin AcceptanceMax 32 coin types, in 2*16 or 1*32 channels
Detection ability of counterfeit Coinswith high detection ability of counterfeit coins
Accepting Speed2 Coins/Sec
Supply Voltage10V-16V DC
Epson receipt thermal printerAutocutterincluded
TechnologyThermal printing
Paper width80mm
Printing speed150mm/s
Data buffer4KB
InterfaceRS232 ,USB
UPSInput voltage145-290va
Output voltage200-255va
Max time for supplying a single PC3~20minutes (for single PC)
Digital Power SupplyAC input voltage range100~240VAC
Frequency50Hz to 60Hz
AC input voltage range100~240VAC
Frequency50Hz to 60Hz
AccessoriesWire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation SystemWindows 7 or Windows XP operation system without license
KIOSK CabinetDurable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
PackingSecurity Packing method with bubble foam and wooden case

Custom bank kiosk solutions by LKS

At LKS, we specialize in providing advanced bank kiosk solutions tailored to meet the diverse needs of modern banking environments. Our bank kiosks combine cutting-edge hardware and software components to deliver secure, efficient, and seamless self-service banking experiences. The kiosks are equipped with high-performance processors, robust industrial-grade motherboards, and multi-touch capacitive screens ranging from 17 to 65 inches for an intuitive user interface. Our kiosks support Windows 7/8 or Linux operating systems, offering flexibility for various applications. Key hardware features include multi-card readers (supporting Magstripe, IC, and RF cards), an encrypted PIN pad for secure transactions, and Cashcode Bill Acceptors with a 96% validation rate and up to 1000 notes capacity.

The kiosks are built to withstand demanding environments, with materials that are anti-dust, anti-vandal, and anti-rust, ensuring durability in high-traffic areas like banks, shopping malls, railway stations, and hospitals. Flexible customization options allow businesses to tailor the kiosks' appearance, adding logos, custom branding, or unique color schemes. Additional modules like advertising screens, coin dispensers, cash dispensers, and barcode scanners can be integrated to enhance functionality. With a focus on reliability, security, and user experience, LKS bank kiosks provide versatile, customizable solutions designed to streamline banking operations and improve customer service.

Custom bank kiosk solutions by LKS

Features and Functions of Bank Kiosk by LKS

  1. High-Performance Hardware: Equipped with dual-core processors (Intel I3/I5/I7), industrial-grade motherboards, and up to 8GB RAM for fast and reliable operation.

  2. Multiple Payment Options: Supports card readers for Magstripe, IC, and RF cards. Equipped with a secure PIN pad and bill acceptor with a 96% validation rate and a capacity of up to 1000 notes.

  3. User Interface: Features multi-touch capacitive screens with sizes ranging from 17 to 65 inches, providing an intuitive interface.

  4. Integrated Components: Can include receipt printers, coin dispensers, cash dispensers, advertising screens, and barcode scanners to offer an all-in-one payment solution.

  5. Operating Systems: Supports Windows 7/8 or Linux, making it adaptable for different business environments.

Features and Functions of Bank Kiosk by LKS

Types and Sizes of Bank Kiosk by LKS

  1. Free-Standing Kiosks: Ideal for high-traffic areas like malls, banks, and airports, available in various screen sizes (17-65 inches).

  2. Wall-Mounted Kiosks: Space-saving design, perfect for banks, retail environments, and smaller locations.

  3. Compact Units: Designed for smaller spaces, providing essential banking functions without compromising performance.

Types and Sizes of Bank Kiosk by LKS

Advantages of LKS's Bank Kiosk

  1. Durability: Built with anti-dust, anti-vandal, and anti-rust materials to withstand demanding environments.

  2. Customization: Offers flexible options such as custom branding, color schemes, and additional modules like coin dispensers, advertising screens, and card printers.

  3. Versatile Applications: Suitable for various commercial environments, including banks, shopping malls, railway stations, hospitals, and theatres.

  4. Efficiency: Streamlines self-service transactions, reducing wait times and improving customer experience with features like bill payment, card transactions, and cash dispensing.

Advantages of LKS's Bank Kiosk

Guidelines for Selecting the Right ATM Kiosk Based on Application Needs

When selecting an ATM Kiosk, configuring it appropriately and choosing the right machine based on different scenarios and application requirements is crucial for ensuring its long-term stable operation and enhancing user experience. Here are configuration recommendations provide by LKS based on different scenarios and needs:

1. Banking Scenarios (Bank Branches, ATM Locations)

Needs: Provide basic banking services such as cash withdrawals, deposits, account inquiries, and transfers.

Recommended Configuration:

  • Screen Size: 19 inches or larger for clear visual display.

  • Touch Screen Type: IR touch screen, supporting multi-touch, ensuring sensitivity and accuracy.

Hardware Components:

  • Cash Acceptor: Supports multiple bill denominations with high validation rate (above 96%).

  • Card Reader: Supports magnetic cards, IC cards, and RFID cards.

  • Printer: Thermal printer with auto-cutter, fast printing speed.

  • PIN Pad: Encrypted PIN pad for transaction security.

Application Needs: Account queries, balance checking, cash withdrawal, and deposit services.

Security: High-security design with anti-tamper and vandal-resistant casing.

2. Public Transport Scenarios (Subway Stations, Train Stations, Airports)

Needs: Provide ticket purchase, reservation, inquiry, and payment services.

Recommended Configuration:

  • Screen Size: 17 inches or 19 inches, ideal for compact spaces with clear display.

  • Touch Screen Type: Capacitive touch screen for fast response and durability.

Hardware Components:

  • Barcode Scanner: Supports ticketing system via barcode scanning.

  • Ticket Printer: Automatic printing of tickets or receipts.

  • Cash Acceptor: Supports coin and paper bill payments, ideal for small payments.

Application Needs: Ticket purchase, reservation, and payment functions.

Environmental Adaptability: Dustproof and waterproof design for complex environments.

3. Retail and Shopping Mall Scenarios

Needs: Provide self-checkout, product payments, promotions, and membership inquiries.

Recommended Configuration:

  • Screen Size: 17 inches or larger for displaying shopping information and promotional ads.

  • Touch Screen Type: Capacitive or infrared touch screen for ease of use and fast response.

Hardware Components:

  • Cash Acceptor: For cash payments, with change return capability.

  • Card Reader: Supports credit/debit card payments.

  • RFID or Barcode Scanner: For product scanning and membership card recognition.

  • Receipt Printer: For printing shopping receipts or invoices.

Application Needs: Payment processing, shopping inquiries, and advertising.

Customization: Customizable appearance, colors, and advertising interfaces.

4. Healthcare and Hotel Scenarios (Hospitals, Hotel Lobbies)

Needs: Provide self-registration, payment, booking, and visitor management services.

Recommended Configuration:

  • Screen Size: 17 inches or 19 inches, suitable for self-service areas and reception desks.

  • Touch Screen Type: Capacitive touch screen with high precision.

Hardware Components:

  • QR Code Scanner: For appointment and visitor management.

  • Card Reader: Supports health insurance payments.

  • Thermal Printer: For printing bills, receipts, and registration forms.

  • Fingerprint Reader (optional): For enhanced security and identity verification.

Application Needs: Self-registration, payments, health information inquiries, and booking.

Customization: Customizable interface, branding, and integrated features.

5. Parking Lot Scenarios

Needs: Provide parking fee payment, payment duration queries, and ticketing services.

Recommended Configuration:

  • Screen Size: 17 inches, suitable for outdoor environments.

  • Touch Screen Type: Infrared touch screen for outdoor use.

Hardware Components:

  • Cash Acceptor: Supports bill and coin payments, with change return capability.

  • Card Reader: For credit card or transit card payments.

  • Receipt Printer: For printing parking tickets.

Application Needs: Parking fee payment, ticket printing, and account balance queries.

Environmental Adaptability: Weatherproof and dustproof design for outdoor conditions.

Selection Recommendations and Considerations:

  1. Scenario Compatibility: Choose the right size, features, and security based on the usage environment. Banks prioritize security and stability, public transport focuses on convenience and efficiency, while retail and healthcare prioritize user experience and self-service capabilities.

  2. Function Customization: When adding extra features like barcode scanning or fingerprint recognition, ensure they align with specific needs such as user identity verification and payment methods.

  3. External Environment: Consider the adaptability to outdoor or indoor environments. Select appropriate waterproof, dustproof, and anti-vandal designs.

  4. Maintenance and Updates: Opt for modular designs and easy-to-maintain systems to ensure long-term operation and low maintenance costs.

By appropriately selecting configurations and technology, you can ensure that the ATM Kiosk machine performs efficiently across various environments, providing users with a seamless experience.
